2700k-7000k Ex Proof Led Lights IP66 Copper Free Aluminum

ATEX Certified 10~250W LED Explosion Proof High Bay Fixtures

• STA123
• Classifications:

Class I, Division 2 Groups A, B, C, D

Class II, Division1 Groups E, F, G

Class II, Division 2 Groups F, G

Class III

Ul1598

UL1598A

Ambient Temperature:

-40℃ to 60℃ (-40℉ to 140℉)

IP66/IP67

IK09

• Application :

Oil and gas industry

• All petroleum production and refining

• Petroleum loading and transportation

• Petroleum storage and retail

• LNG industry

• All mining operations and service

Ocean, marine and aerospace field

• Ocean platform operation facilities

• Aerospace clean room and production

• Ocean vessel operations

Food and alcohol industry

• Flour and fine particle production and storage

• Food and distilling production

• Alcohol industry

Chemical industry

• All types of paint facilities

• Chemical production and storage

Metal treatment

• Steel and aluminum factories

• Pumping stations in any environment

• Metal smelting, foundry and fabrication

Other high humidity, high dust, high temperature, vapor locations.

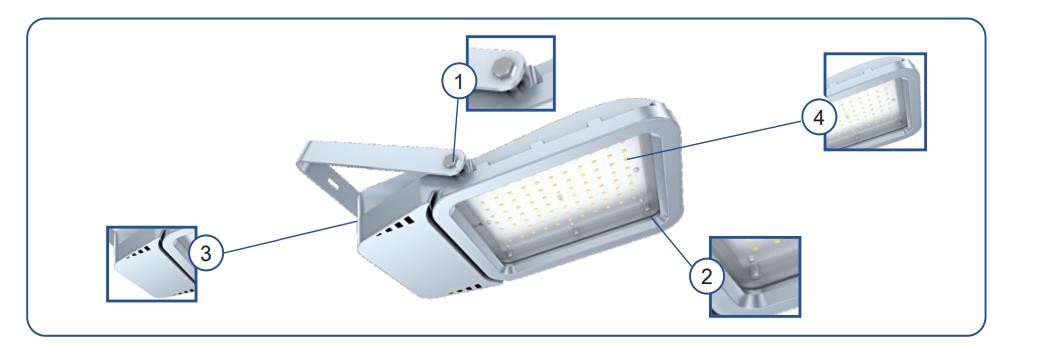

• Key Features:

1. Angle disc design, faster installation and more precise adjustment of the aiming angle.

2. Stainless steel fasteners, better corrosion resistance.

3. ADC12 aluminum housing, good corrosion resistance.

4. Tempered glass, high light transmittance and impact resistance.

• Additional Features:

1. 0-10V dimming control.

2. Beam angles are optional: 40°/60°/90°/120°.

3. 5-year warranty.

• Standard Materials:

1. Body: ADC12 aluminum

2. Lens: tempered glass

3. Surface: explosion-proof joint surface.

• Features & Benefits:

Environmentally Friendly 50,000 hours lifespan.

Low temperature applications to -40°C (-40°F) and high temperature up to 60°C (140°F).

Best-in-class efficacy up to 120-140 lumens per watt.

Waterproof and dust-proof, without internal cleaning and maintenance.

Simple structure for easy and quick installation.

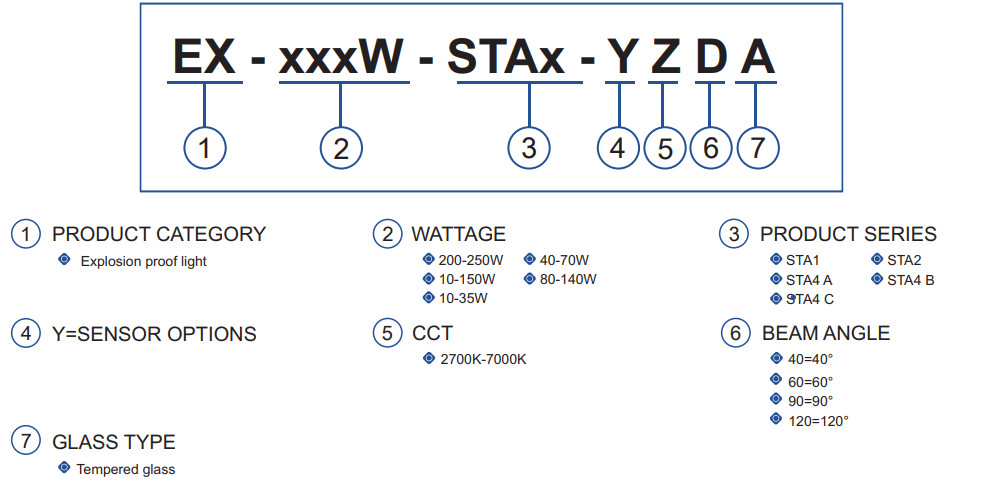

• Catalog Number Logic:

• Technical Data:

Model	Wattage	Operating Voltage	Total Lumens(Im)	Efficacy(Im/W)	CRI	CCT	Dimming
EX-xxxW-STA1	200-250W	AC90-305V/100-305V/277-480V/180-528V 50/60Hz	24000-35000	120-140	>70	2700k-7000k	0-10v dimmable
EX-xxxW-STA2	10-150W	AC90-305V/100-305V/277-480V/180-528V 50/60Hz	1200-21000	120-140	>70	2700k-7000k	0-10v dimmable
EX-xxxW-STA3	10-150W	AC90-305V/100-305V/277-480V 50/60Hz	1200-21000	120-140	>70	2700k-7000k	0-10v dimmable

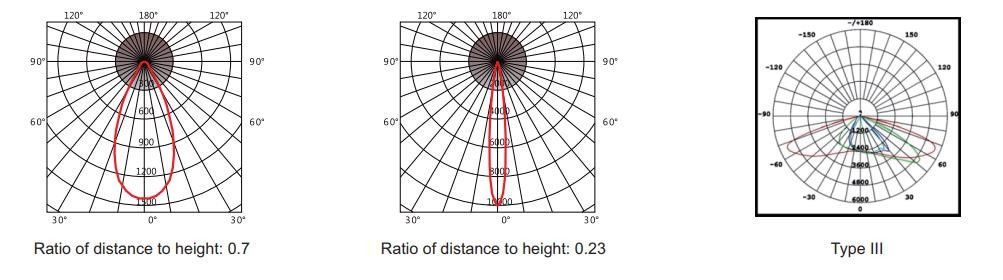

• Photometry:

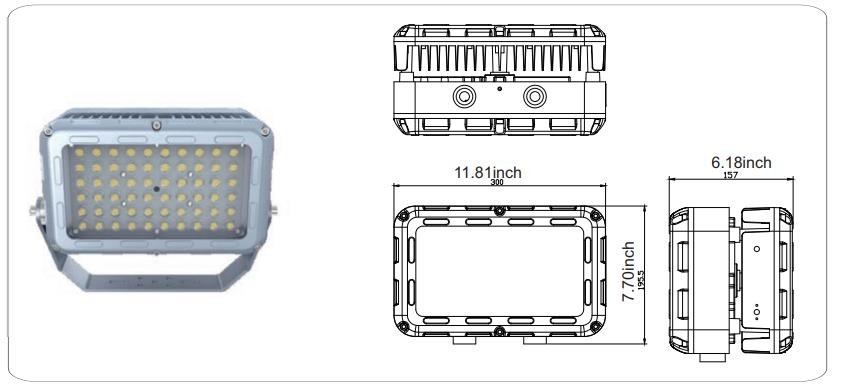

• Dimensions & Packing:

EX-xxxW-STA1

EX-xxxW-STA2

EX-xxxW-STA3

Model	Packing Size(inch)	N.W(kg)	G.W(kg)
EX-xxxW-STA1	19.7*13*2.8	9.5	10.5
EX-xxxW-STA2	16.3*10.4*3	6.5	7.5
EX-xxxW-STA3	17.1*11*3.5	7.3	8.3

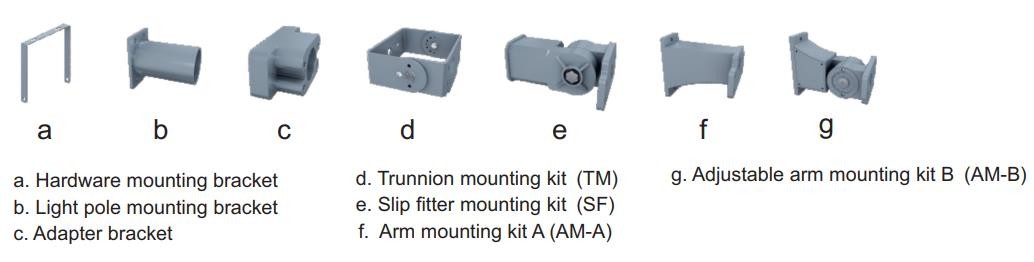

• Accessaries & Mounting Kits:

EX-xxxW-STA1/2

EX-xxxW-STA3

• STA124
• Classifications

II2 G Ex db eb mb IIC T5/T6 Gb

II2 D Ex tb op is IIIC T95/80℃ Db

Ambient Temperature:

-40℃ to 60℃ (-40℉ to 140℉) (T6, 10W-100W)

-40℃ to 60℃ (-40℉ to 140℉) (T5, 100W-250W)

-20℃ to 40 ℃ (-4℉ to104℉) (T6, 10W, in emergency)

IP66/IP67

IK09

• Key Features:

1. Independent wiring cavity makes wiring more convenient.

2. Angle disc design, faster installation and more precise adjustment of the aiming angle.

3. Stainless steel fasteners, better corrosion resistance.

4. Professional fin-shape channel design for faster heat dissipation.

5. Tempered glass, high light transmittance and impact resistance.

• Additional Features:

0-10V dimming control.

Beam angles are optional: 40°/60°/90°/120°.

5-year warranty.

• Standard Materials:

Body: ADC12 aluminum

Lens: tempered glass

Surface: explosion-proof joint surface.

• Features & Benefits:

1. Environmentally Friendly 50,000 hours lifespan.

2. Low temperature applications to -40°C (-40°F) and high temperature up to 60°C (140°F).

3. Best-in-class efficacy up to 120-140 lumens per watt.

4. Waterproof and dust-proof, without internal cleaning and maintenance.

5. Simple structure for easy and quick installation.

• Application :

Oil and gas industry

• All petroleum production and refining

• Petroleum loading and transportation

• Petroleum storage and retail

• LNG industry

• All mining operations and service

Ocean, marine and aerospace field

• Ocean platform operation facilities

• Aerospace clean room and production

• Ocean vessel operations

Food and alcohol industry

• Flour and fine particle production and storage

• Food and distilling production

• Alcohol industry

Chemical industry

• All types of paint facilities

• Chemical production and storage

Metal treatment

• Steel and aluminum factories

• Pumping stations in any environment

• Metal smelting, foundry and fabrication

Other high humidity, high dust, high temperature, vapor locations.

• Catalog Number Logic:

• Technical Data:

Model	Wattage	Operating Voltage	Total Lumens(Im)	Efficacy(Im/W)	CRI	CCT	Dimming
EX-xxW-STA1	200-250W	AC100-305V 50/60Hz	24000-35000	120-140	>70	2700K-7000K	0-10v dimmable
EX-xxW-STA2	10-150W	AC100-305V 50/60Hz	1200-21000	120-140	>70	2700K-7000K	0-10v dimmable
EX-xxW-STA4 A	10-35W	AC100-305V 50/60Hz	1200-9800	120-140	>70	2700K-7000K	0-10v dimmable
EX-xxW-STA4 B	40-70W	AC100-305V 50/60Hz	4800-9800	120-140	>70	2700K-7000K	0-10v dimmable
EX-xxW-STA4 C	80-140W	AC100-305V 50/60Hz	9600-19600	120-140	>70	2700K-7000K	0-10v dimmable

• Photometry:

• Dimensions & Packing:

EX-xxxW-STA1

EX-xxxW-STA2

EX-xxxW-STA4 A

EX-xxxW-STA4 B

EX-xxxW-STA4 C

Model	Packing Size(inch)	N.W(kg)	G.W(kg)
EX-xxW-STA1	19.7*13*2.8	9.5	10.5
EX-xxW-STA2	16.3*10.4*3	6.5	7.5
EX-xxW-STA4 A	9.5*6.8*5.1	4.7	5.7
EX-xxW-STA4 B	11.8*7.7*6.2	7.5	8.8
EX-xxW-STA4 C	15.4*13*6.5	15	17.5

• Accessaries & Mounting:

EX-xxxW-STA1/2

EX-xxxW-STA4

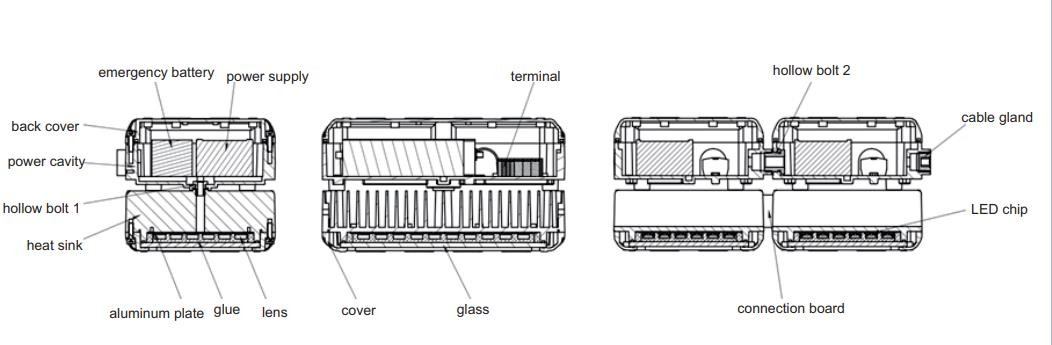

Construction (STA 4) :

• QA:

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: 3-5 days for Sample preparing ,8-10 working days for mass production
